Earth Electrical System II, Modular Units

The system consists of three seperate modules.

Reverse engineering is used in matching the modules to the desired usage.

These systems can be very simple, Looking at the next page, variations can be made and outputs made variable.

и- v-

12

Earth Electrical System II, Domestic Use Range Module Up to Two Million Volt-Amperes-Rcactive Output * Plan "A", With Variable Controls Not to Scale

Magnetic Flux Amplification

Parts: 1. Coil, Variable, 2. Capacitor, Variable, 3, Resistor, Variable, Transistor, R.F.,

5. Battery, Rechargeable, 6. 0fe-0n Switch, Variable, 7, High Voltage Transformer,

8. Feed Back with Spark Gap, 9. Reacior, Induction Coil, 10. Feed Back with Spark Gap, 11. Reactant Coil, 12. Output for II 11, 13. Input for eleven, 14. Grounding for eleven.

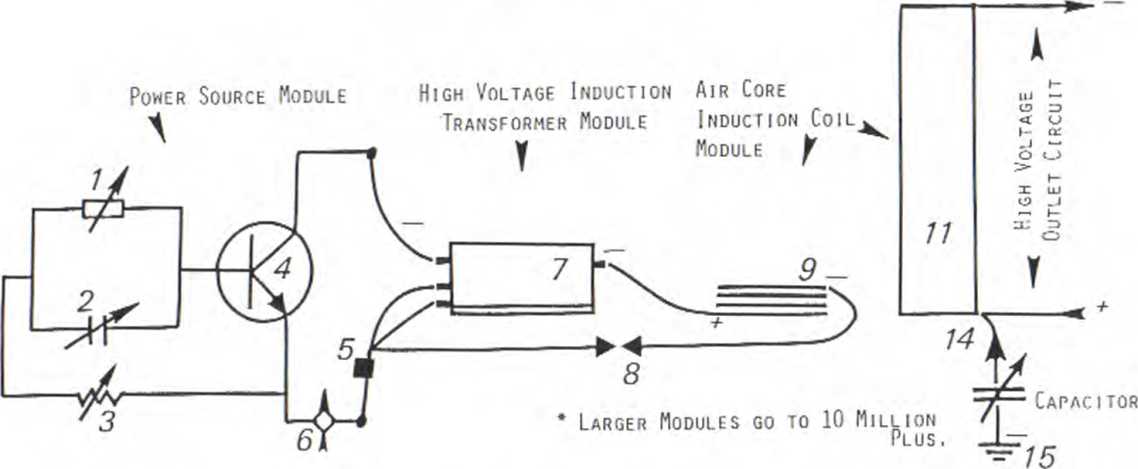

Earth Electrical Sysiem II, Domestic Use Range Module Up to Two Million Volt-Amperes-Reactive Output * Plan "8", Electrical Automobilc Energy Source

Power Source Module High Voltage Induction Air Core
Magnetic Flux Amplification

Parts: 1, Varactor, Radio Frequency, 2. Resistor, 3. Transistor, Radio Frequency,

*l. Огг-On Switch, Multi-Posit ion, 5, Battery, Rechargeable, 6. Transformer Grounding, 7, High Voltage Induction Transformer, 8. Reactor, Induction Coil, 9. Feed Back with Spark Gap, 10. Reactant, Induction Coil, 11. Grounding for # JO. Out-put Circuit, In Volt-Amperes-Reactive.

This being the Brief case device, consider what is here.

"is said to be incomplete", lets

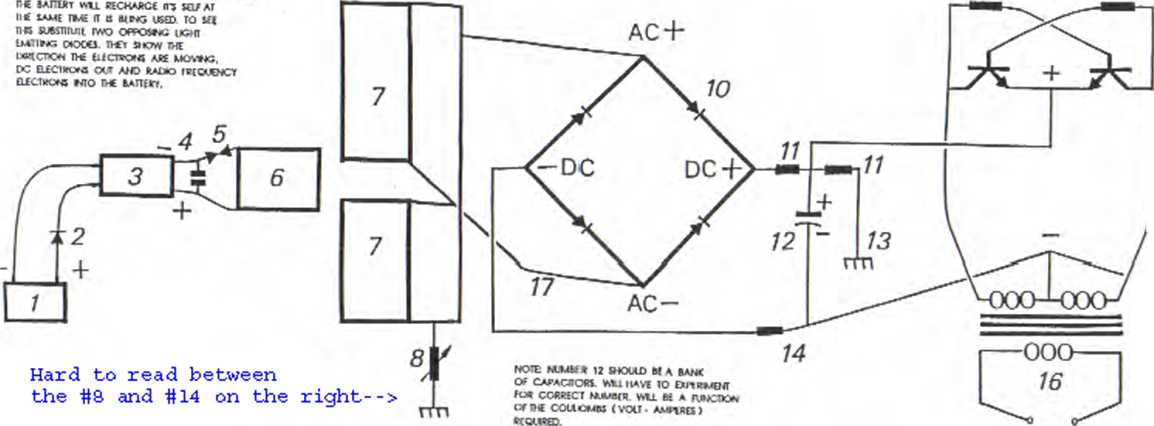

1, Battery 6 or 12 volt Dated

2, Diode Poss, a varactor Jan 17 1997

3, High Voltage module L-l and L-2

4, Capacitor TDK 10,9 pF 30 KV

5, Spark plug Small engine ,0025 in, gap

6, Inductor coil L-3

7, Induction coil L-4

8, Voltage controle shunt

9, Frequency adjuster prevents derating by diode bridge,

10, Diode bridge 200 nanosecond, rf > 100 KV

11, Voltage devider circuit, corrects voltage for next stage,

12, Capacitor Electrolytic, smoothes out DC and ripple effect

13, Earth Ground

14, Voltage devider circuit, connects voltage to transformer

15, Inverter circuit DC + in 60 CPS to transformer

16, Output from transformer to load,

17, Center tap; This has been stated in the Metacafe video this is the ground wire to make the device run.

ELECTRICAL ENERGY GENERATING SYSTEM

Patent Pending 08/ 100.074Wit FIX (MS CCMWCIOfc ( ]) ntfsn UWIH IS A WAV! IXMSW СОМРОМЭЛ Of IX 1-0 O* L-7’. (WOUBfCY.15
Magnetic Flux Amplification
Note, ft 12; is a capacitor bank and you need to expiriment to find the correct number, it will be a function of coloumbs (Volt - Amperes) requiredNote Above ft 3; If the + connector 7 wire is a wave length, of the tt 6 or tt 7s frequency, the battery will recharge itself while it is being used. To see this use two light emmiting diods. They show the direction the electrons are moving, DC electrons out and radio frequency electrons into the battery.

I should interject here, to bring it to the forefrount of your mind however counterintuitive it may seem, groundings to the Earth at various points within the systems are unusually odd. This is a closed part of the system yet is open to the Ambient.

Look at the center tap below; I believe this is a ground in certain devices. Further, as you read you will notice Don says a ground at the bace of L-2 is an advantage.

Note; as referanced, The block wall is the base of a dipole,

(or L-2 coil) this is the area of electron spin separation.

Selectively as you read through Don's report, you will notice in scem-atics, numerous Earth groundings are used in odd various places.

This is probably the most important aspect of this entire literature!


The quality of the grounding system determines the effictiveness of this method of producing electricty. | Magnetic Flux Amplification | HIGH VOLTAGE INDUCTION TRANSFORMER MODUEL:
